Description
Description

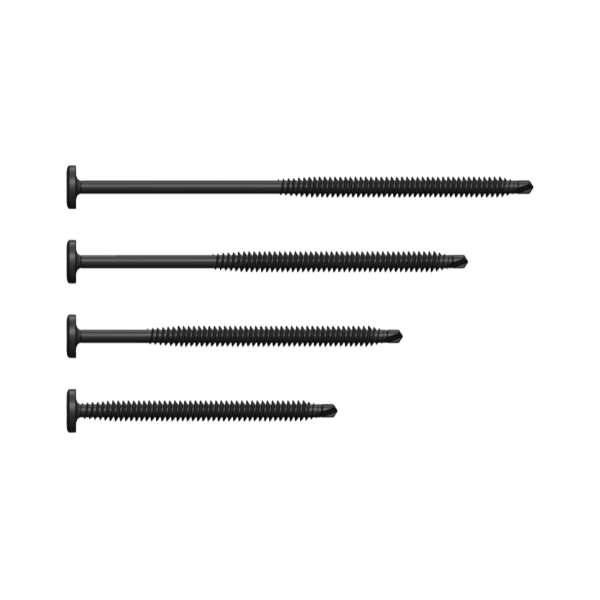

CANFIX 15 heavy-duty roofing fasteners is a high-performance fastener designed to secure insulation and membrane to steel (18 – 22 ga.), wood and structural concrete decks. The fastener is available in lengths from 1”-1/4” to 24”. The double flute self-drilling point can easily penetrate steel while offer exceptional back-out resistance.
Application
CANFIX 15 heavy-duty roofing fasteners can be used for insulation attachment to steel, wood, and structural concrete decks. For steel deck, ¾-in. (20 mm) penetration is the minimum allowable. For OSB and plywood*, ¾-in. (20 mm) penetration through the underside of the board is the minimum allowable.
Specification
| Material | Hardened Carbon Steel |
| Coating | HCR corrosion resistant coating |
| Head | #3 Phillips flat truss |
| Drill | Double flute drill point |
Size
1″-1/4″ 38 mm
2″ 51 mm
3″ 76 mm
4″ 102 mm
5″ 127 mm
6″ 152 mm
7″ 178 mm
8″ 203 mm
9″ 229 mm
10″ 254 mm
11″ 279 mm
12″ 305 mm
14″ 356 mm
16″ 406 mm
18″ 457 mm
20″ 508 mm
22″ 559 mm
24″ 610 mm
