Description
Description

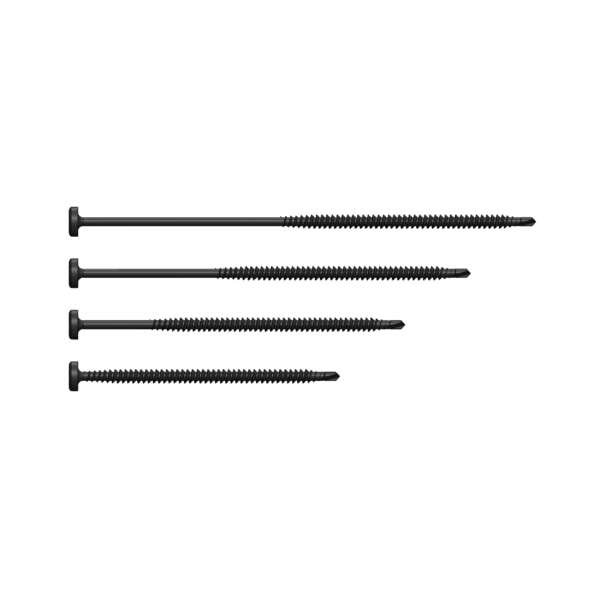

CANFIX 12 roofing fasteners are designed to secure insulation to steel (16 – 22 ga.), wood and structural concrete decks. The fastener is available in lengths from 1”-5/8” to 10”. The double flute selfdrilling point can easily penetrate steel while offering exceptional back-out resistance.
Application
CANFIX 12 roofing fasteners can be used for insulation attachment to steel, wood, and structural concrete decks. For steel deck, ¾-in. (20 mm) penetration is the minimum allowable. For OSB and plywood*, ¾-in. (20 mm) penetration through the underside of the board is the minimum allowable.
Specification
| Material | Hardened Carbon Steel |
| Coating | HCR corrosion resistant coating |
| Head | #3 Phillips flat truss |
| Drill | Double flute drill point |
Size
1″ – 5/8″ 42 mm
2″ – 1/4″ 57 mm
2″ – 7/8″ 73 mm
3″ 76 mm
3″ – 1/4″ 83 mm
3″ – 3/4″ 95 mm
4″ – 1/2″ 114 mm
5″ 125 mm
6″ 153 mm
7″ 178 mm
8″ 203 mm
9″ 229 mm
10″ 254 mm
